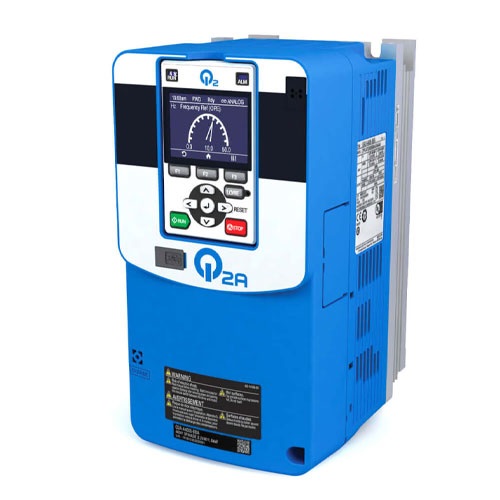

Mô tả sản phẩm Biến tần Omron Q2A-A2138-AAA 30kW 3 Pha 220V

Manufacturer:                                    Omron

Series: Q2A

Model:                                              Q2A-A2138-AAA

Application:                                     general purpose

Capacity, kW:                                   30

Current, А:                                       115

Main power supply, V:                    200-240

Phase: 3

Output frequency, Hz:                      0,1-590

Enclosure:     IP20

Overload capacity, % per 1 min.:   150

Acceleration time, sec:                    0-6000

Deceleration time, sec:                    0-6000

EMC filter:                                      +

Braking unit: braking transistor

RS485 (Modbus RTU):       RS484, MEMOBUS, Modbus (optional: EtherCAT, EtherNet/IP, PROFINET, POWERLINK)

PID:                                               PID control

V/f control mode:     +

Operation temperature, °С:           -10…..+50

Storage temperature, °С:               -20…..+70

Dimensions (W x H x D), mm:       255x450x280

Weight, kg:    24
